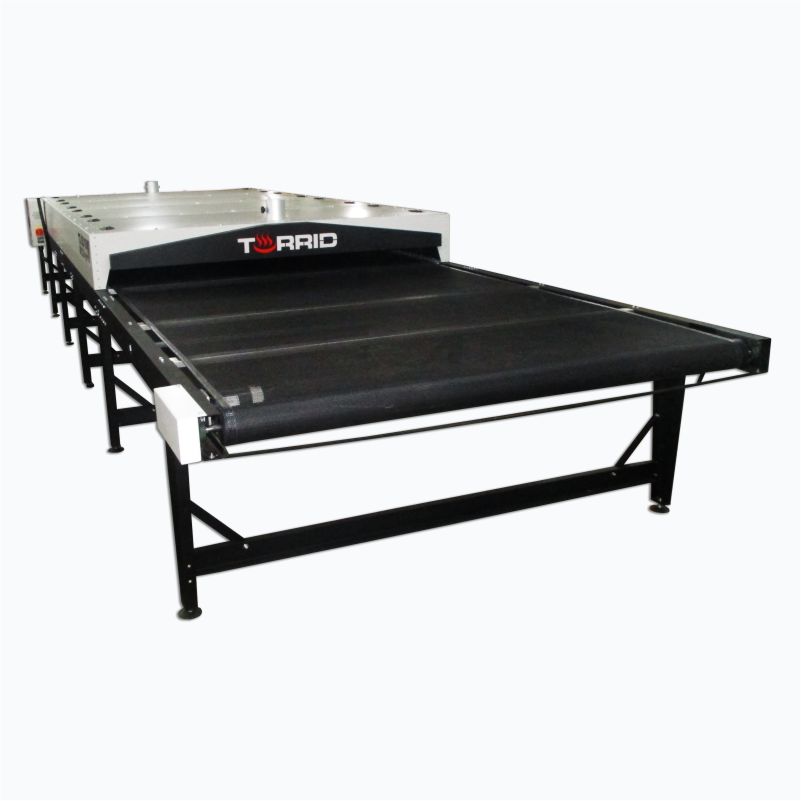

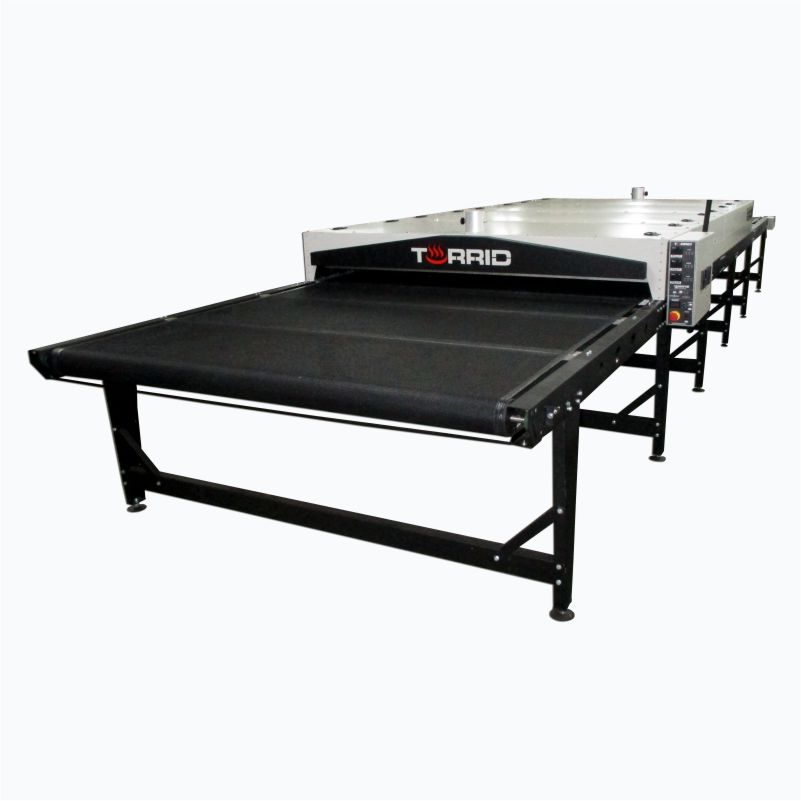

Torrid TD-8018 Conveyor Dryer

TORRID TD-8018 With a Belt length of 8mm long and 1.8m wide, this oven is capable of serious production and would suit large print companies using automatic carousel equipment. A good optional extra would be active air control, allowing air movement to compliment the already excellent curing capabilities. Features like a 3 Zone Digital PID Temperature control with accurate readings of +/-1 decrease Celsius, ease of mind U-Track auto belt tracking system as well as a digital belt speed controller comes is standard on this unit.  This is also the ideal unit for the curing of all DTG print art.

Product Specs

• Model: TD-8018
• Heating: 36kw IR Ceramic, 3 Phase
• Conveyor length: 8m
• Dryer Length: 4m
• In-Feed Length: 3m
• Out Feed: 1m
• Total Width: 1200mm
• Belt Width: 1.8m
• Height: 1.2m
• Belt Height: 800mm
• Approximate capacity: 1000 units per hour and up.

Features and Benefits

• Solid State electrical components
• 3 Zone Digital Temperature PID Control
• Digital belt speed control
• U-TRACK Auto belt tracking
• Auto Cool-down
• Adjustable element height,
• Butterfly outlet vent
